Zero Half Saddle Threshold 628 Data Sheet 012540
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
628
Part No: Part description:
Half saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

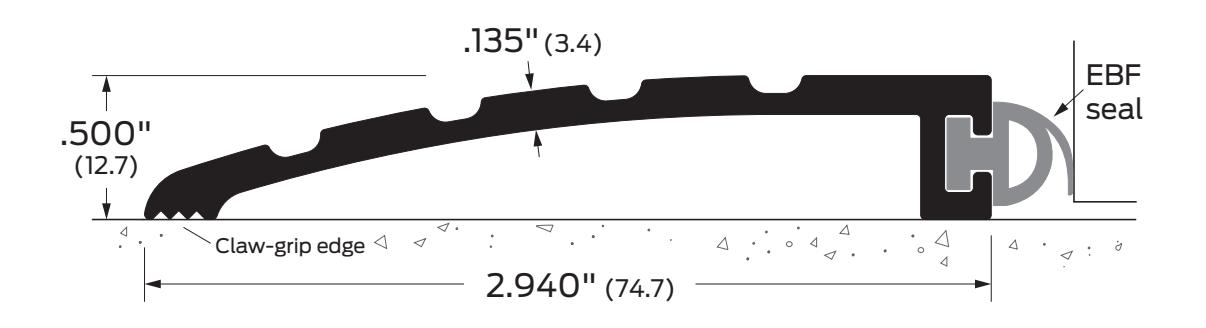

Image may not be shown to scale
Notes:
Neoprene extruded bulb/finger for double-sealing protection.
|
Certifications:
Finishes: |
Options: | ||||
|---|---|---|---|---|---|
| Fire rated-UL10c | A | Aluminum mill finish | E | Epoxy abrasive tread | |
| BK |
Aluminum black anodized
Aluminum dark bronze anodized |
EL |
Photoluminescent and abrasive
epoxy tread |
||
| D | |||||
| V3 | Full body strength fill | ||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | ||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
||||
