Zero Half Saddle Threshold 627 Data Sheet 012539
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
627
Part No: Part description:
Half saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

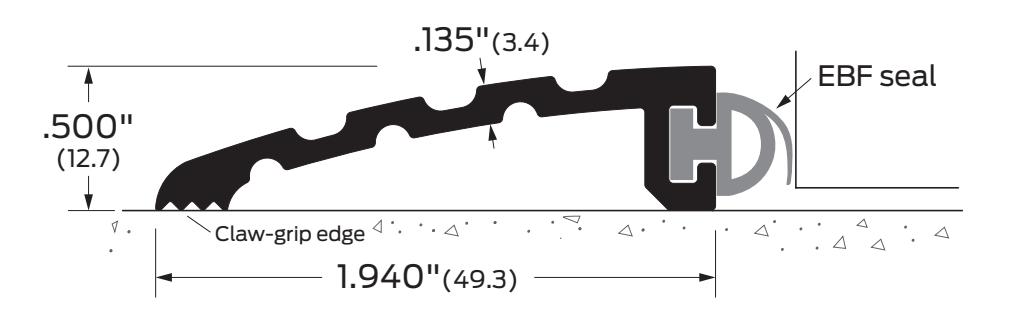

Image may not be shown to scale
Notes:
Neoprene extruded bulb/finger for double-sealing protection.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
| Fire rated-UL10c | 627A, 627D, 627G, 627BK | J33100, J32120 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| 627A-E, 627D-E, 627G-E, 627BK-E | J33200 | BK | Aluminum black anodized | EL | Photoluminescent and abrasive | |
| D | Aluminum dark bronze | epoxy tread | ||||
| anodized | V3 | Full body strength fill | ||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
