Zero Half Saddle Threshold 623 Data Sheet 012544

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

623

Half saddle threshold

Notes: Provided by:

Customer name: Job no: Date:

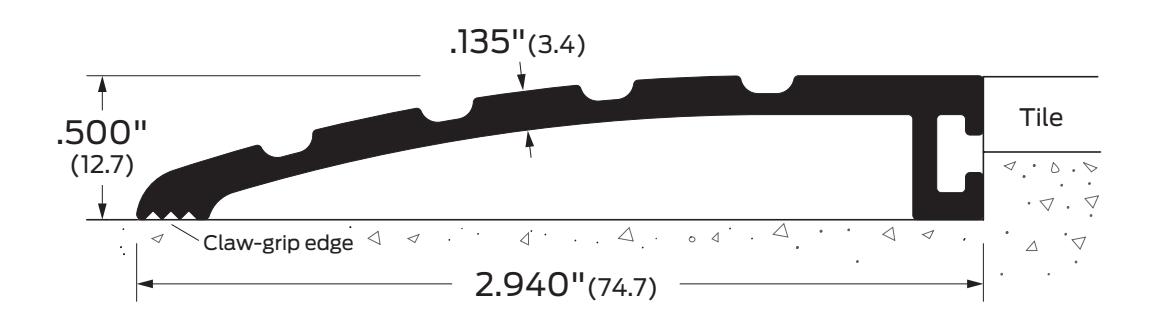

Image may not be shown to scale

Notes:

Also suitable for use as carpet divider threshold. ADA compliant when installed flush with the flooring

Certifications:

Fire rated-UL10c

ADA Accessible

Finishes:

A Aluminum mill finish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive

epoxy tread

V3 Full body strength fill

EV3 Epoxy and full body strength fill

ELV3 Photoluminescent and abrasive

epoxy tread, full body strength fill
