2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
622
Part No: Part description:
Half saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

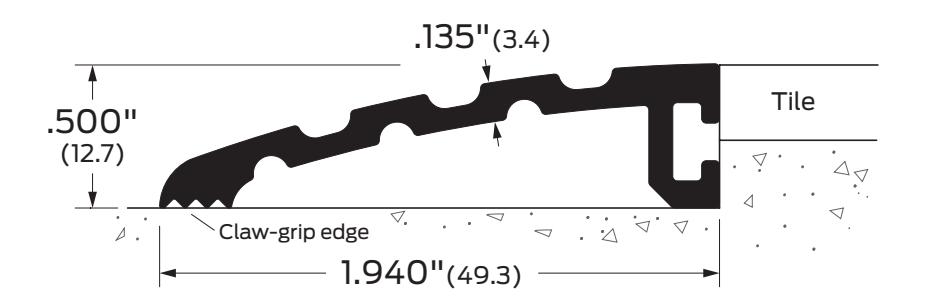

Image may not be shown to scale
Notes:
Also suitable for use as carpet divider threshold. ADA compliant when installed flush with the flooring
| Certifications: | |
|---|---|
| Fire rated-UL10c | |
ADA Accessible
ANSI/BHMA:
622A, 622D, 622G, 622BK J33100, J33160, J33180 622A-E, 622D-E, 622G-E, 622BK-E J33200, J33260
Finishes:
A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze
anodized
G Aluminum gold anodized
Options:
E Epoxy abrasive tread
EL Photoluminescent and abrasive epoxy tread
V3 Full body strength fill
EV3 Epoxy and full body strength fill
ELV3 Photoluminescent and abrasive epoxy tread, full body strength fill
