Zero Half Saddle Threshold 524 Data Sheet 012542

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

524

Part No: Part description:

Half saddle threshold

Notes: Provided by:

Customer name: Job no: Date:

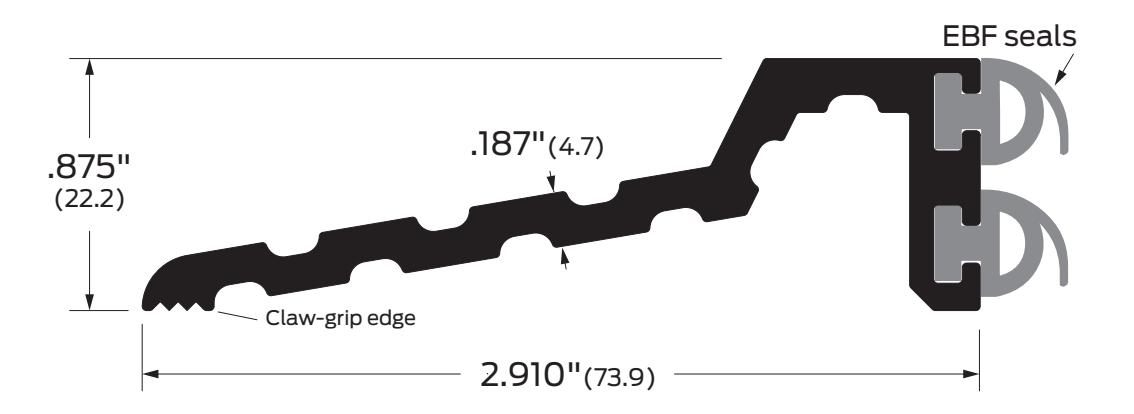

Image may not be shown to scale

Notes:

Neoprene extruded bulb/finger for double-sealing protection.

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c	524A, 524D, 524G, 524BK	J33100	A	Aluminum mill finish	E	Epoxy abrasive tread
	524A-E, 524D-E, 524G-E, 524BK-E	J33200	BK	Aluminum black anodized	EL	Photoluminescent and abrasive epoxy tread
			D	Aluminum dark bronze anodized
					V3	Full body strength fill
			G	Aluminum gold anodized	EV3	Epoxy and full body strength fill
					ELV3	Photoluminescent and abrasive epoxy tread, full body strength fill
