Zero Half Saddle Threshold 1674 Data Sheet 012535
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
1674
Half saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

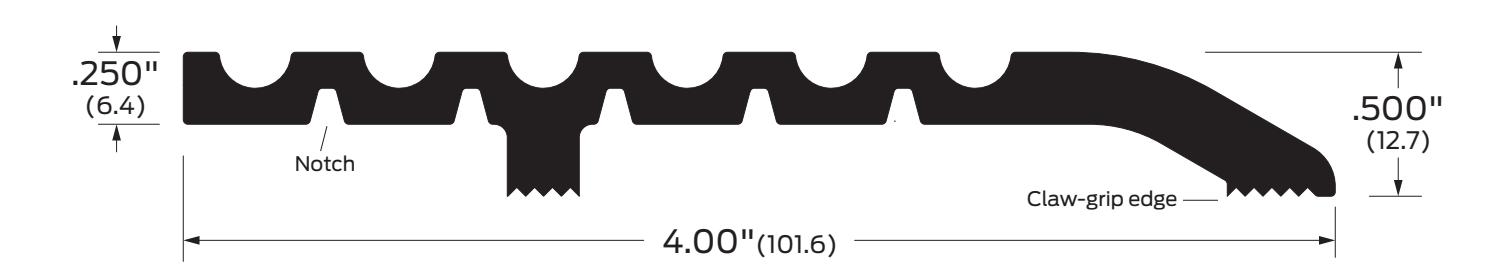

Image may not be shown to scale
Notes:
Notch allows use with adjustable threshold system.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | ||
| Fire rated-UL10c |
1674A, 1674D, 1674G, 1674BK
J33100, J33160, J33180 |
A | Aluminum mill finish | E | Epoxy abrasive tread |
|
1674A-E, 1674D-E, 1674G-E, 1674BK-E
J33200, J33260 |
BK
D |
Aluminum black anodized | EL |
Photoluminescent and abrasive
epoxy tread |
|
|
Aluminum dark bronze
anodized |
|||||
| V3 | Full body strength fill | ||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | ||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
||||
