2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com
www.zerointernational.com
1545
Part No: Part description:

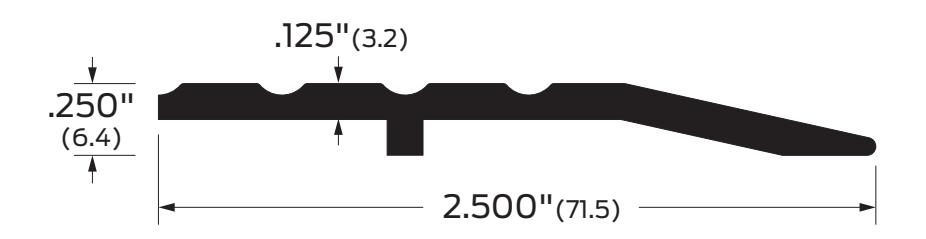

Half saddle threshold
Notes: Provided by:
Customer name: Job no: Date:
Image may not be shown to scale
Options:
E
Epoxy abrasive tread
EL
Photoluminescent and abrasive epoxy tread
V3
Full body strength fill
EV3
Epoxy and full body strength fill
ELV3
Photoluminescent and abrasive epoxy tread, full body strength fill Finishes:
A
Aluminum mill finish
BK
Aluminum black anodized
D
Aluminum dark bronze anodized
G
Aluminum gold anodized ANSI/BHMA: 1545A, 1545D, 1545G, 1545BK J33100, J33130, J33180 1545A-E, 1545D-E, 1545G-E, 1545BK-E J33200, J33230 Certifications: Fire rated-UL10c ADA Accessible
