Zero Glass Door Weather Stripping Models 137 138 8136 8137 & 8138 Installation Instructions 112448

Models 137, 138, 8136, 8137, & 8138

Glass Door Weather Stripping

Installation Instructions

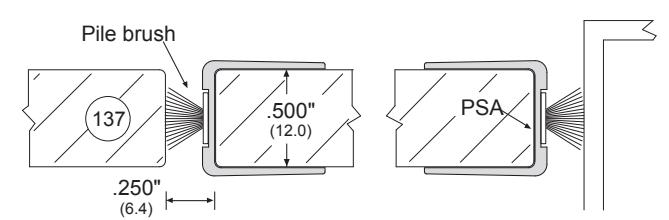

#137 For .500"or 12mm thick glass doors

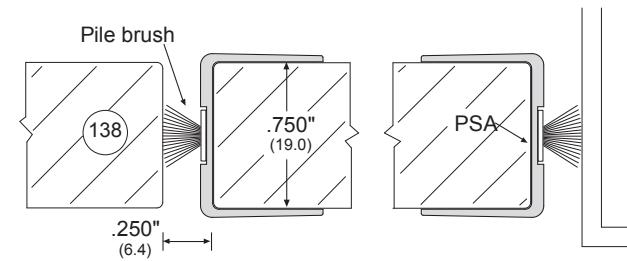

#138 For .750"or 19mm thick glass doors

#8136 For .375" or 10mm thick glass doors.

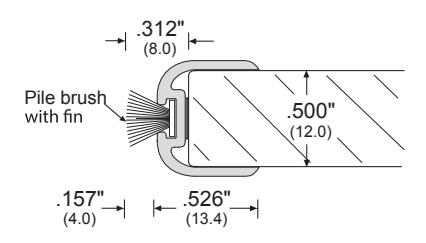

#8137 For .500" or 12mm thick glass doors.

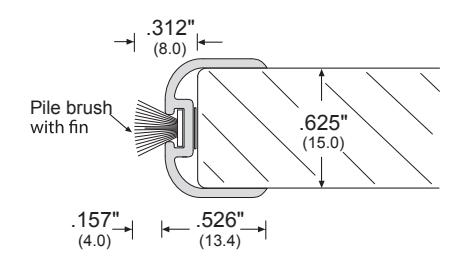

#8138 For .625" or 15mm thick glass doors.

Before Installation:

• Thoroughly clean the surface area where the polycarbonate seal is to be applied. Make sure the surface is clean from any impediments (dust, dirt, oil, grease, etc) and smooth. You may use a solvent cleaner (such as mineral spirits) or common detergent cleaner.
• 2 Surface area must be completely dry before the installation process begins.

To Install:

• Measure and cut polycarbonate seal to length needed allowing for miter cuts where necessary. Do not damage the woven pile insert when miter cutting.
• Remove protective paper backing. Apply polycarbonate seal to the edge of glass. For a good miter joint make sure the overall positioning is correct.
• 3 After installation, check that doors swing smoothly.
