2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
643
Carpet divider threshold
Notes: Provided by:
Customer name: Job no: Date:

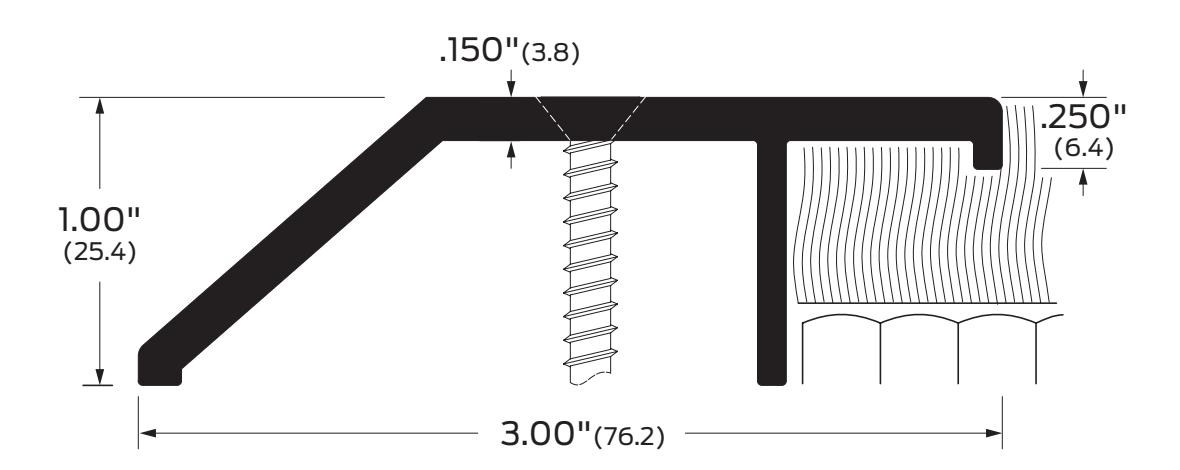

Image may not be shown to scale
Notes:
| Supplied without mounting holes. | ||||||
|---|---|---|---|---|---|---|
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
| Fire rated-UL10c | 643A, 643BK, 643D, 643G | J33300, J33340 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| 643A-E, 643BK-E, 643D-E, 643G-E | J33400, J33440 | BK | Aluminum black anodized | EL |
Photoluminescent and abrasive
epoxy tread |
|
| D | Aluminum dark bronze | |||||
| anodized | V3 | Full body strength fill | ||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
