2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

676

Part No: Part description:

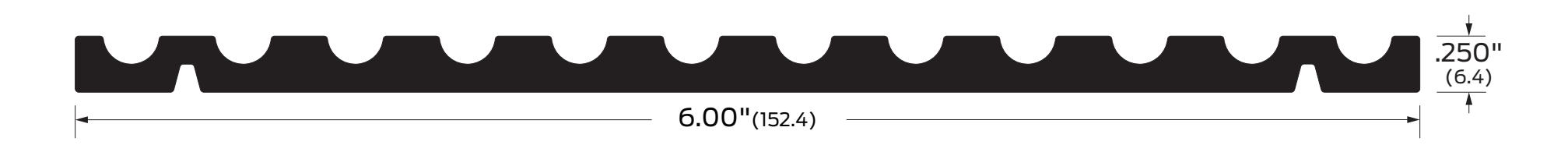

Adjustable threshold

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

Notes:

Supplied without mounting holes.

Certifications:

Fire rated-UL10c

ADA Accessible

ANSI/BHMA:

676A, 676D, 676G, 676BK J37100, J37136 676A-E, 676D-E, 676G-E, 676BK-E J37200, J37236 676B J17100, J17136

676B-E J17200, J17236

Finishes:

A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze

anodized

G Aluminum gold anodized B Bronze, architectural mill finish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

(not available for B-ORB finish)
