Zero Adjustable Threshold 675 Data Sheet 012578
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
675
Adjustable threshold
Notes: Provided by:
Customer name: Job no: Date:

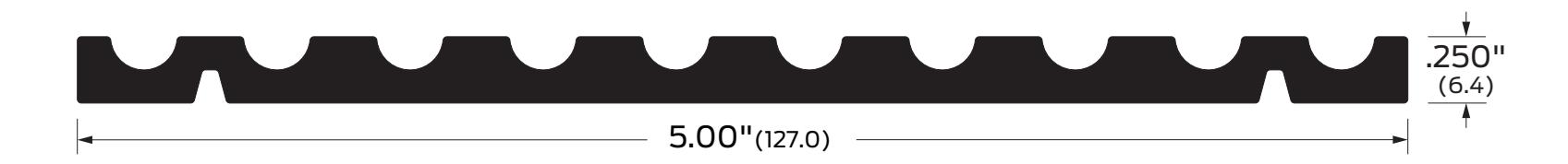

Image may not be shown to scale
Notes:
Supplied without mounting holes.
|
Certifications:
Fire rated-UL10c ADA Accessible |
ANSI/BHMA:
675A, 675D, 675G, 675BK 675A-E, 675D-E, 675G-E, 675BK-E |
J37100, J37136
J37200, J37236 |
Finishes:
A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze anodized |
Options:
E Epoxy abrasive tread EL Photoluminescent and abrasive epoxy tread |
||
|---|---|---|---|---|---|---|
| G | Aluminum gold anodized | |||||
