673

Part No: Part description:

Adjustable threshold

Notes: Provided by:

Customer name: Job no: Date:

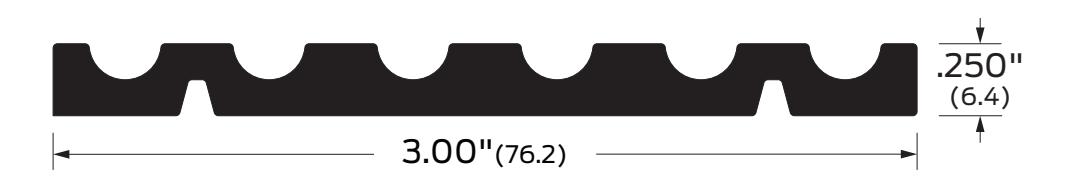

Image may not be shown to scale

Notes:

Supplied without mounting holes.

Certifications:

Fire rated-UL10c

ADA Accessible

ANSI/BHMA:

673A, 673D, 673G, 673BK J37100, J37136 673A-E, 673D-E, 673G-E, 673BK-E J37200, J37236 673B J17100, J17136 673B-E J17200, J17236

Finishes:

A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze

anodized

G Aluminum gold anodized B Bronze, architectural mill finish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

(not available for B-ORB finish)
