Zero Adjustable Threshold 168 Data Sheet 012590
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
168
Part No: Part description:
Adjustable threshold
Notes: Provided by:
Customer name: Job no: Date:

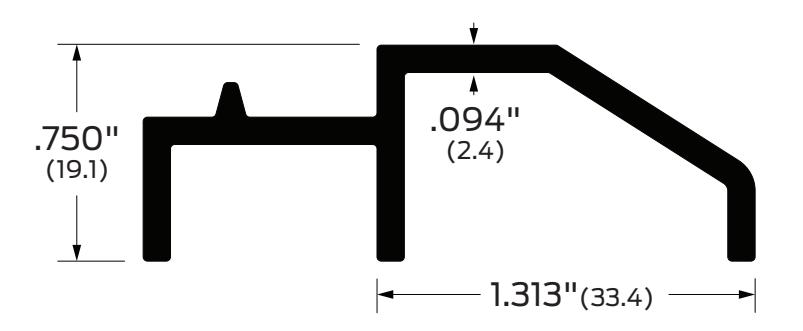

Image may not be shown to scale
Notes:
Threshold rest. Supplied without mounting holes.
| Certifications: | ANSI/BHMA: | Finishes: | |
|---|---|---|---|
| Fire rated-UL10c | 168A, 168BK, 168D, 168G | J37360 |
A
Aluminum mill finish |
| 168B | J17360 |
BK
Aluminum black anodized |
|
|
D
Aluminum dark bronze anodized |
|||
|
G
Aluminum gold anodized |
|||
|
B
Bronze, architectural mill finish |
|||
|
B-ORB
Oil-rubbed bronze |
|||
