Zero 98 PSA Weatherstripping for Glass Doors Data Sheet 112868

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

98-PSA

Part No: Part description:

PSA Weatherstripping for glass doors

Notes: Provided by:

Customer name: Job no: Date:

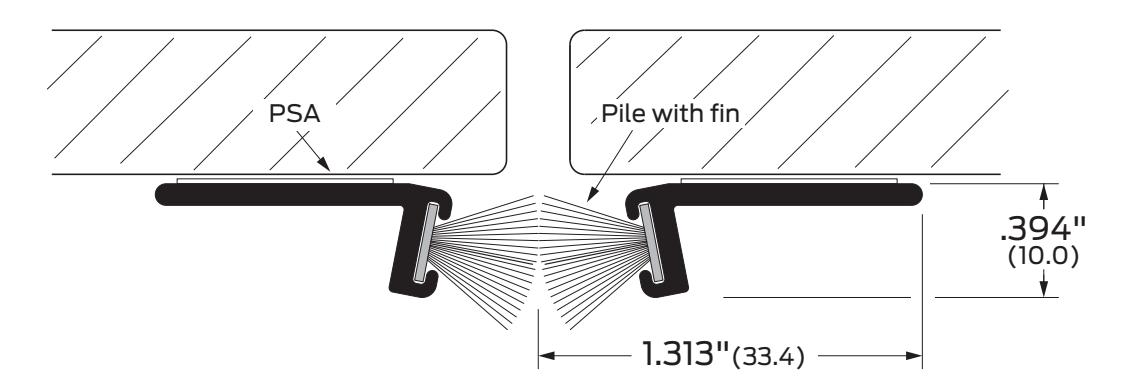

Image may not be shown to scale

Notes:

Min door gap .250", max door gap .625"

ANSI/BHMA:

98AA-PSA, 98BK-PSA, 98D-PSA, 98G-PSA R3F735

Finishes:

AA Aluminum clear anodized BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized
