Zero 96 Door Sweep Data Sheet 112668

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

96

Part No: Part description:

Door sweep

Notes: Provided by:

Customer name: Job no: Date:

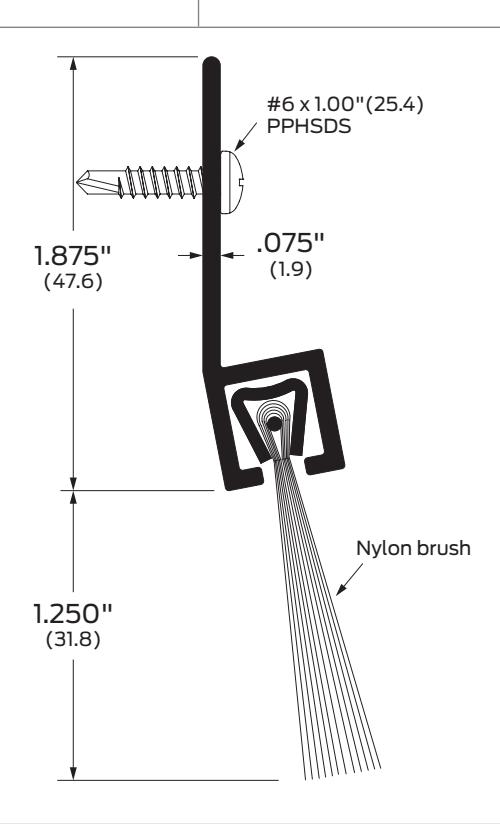

Image may not be shown to scale

Notes:

Suitable for mixed-use commercial, hospitality, multi-family, as well as sliding barn doors.

ANSI/BHMA:

96A, 96BK, 96D, 96G R3A436

Finishes:

A Aluminum mill finish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

SEC Security screws
