Zero 9137 PSA Weatherstripping for Glass Doors Data Sheet 112862

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com

9137

Part No: Part description:

PSA Weatherstripping

for glass doors

Notes: Provided by:

www.zerointernational.com

Customer name: Job no: Date:

Image may not be shown to scale

Notes:

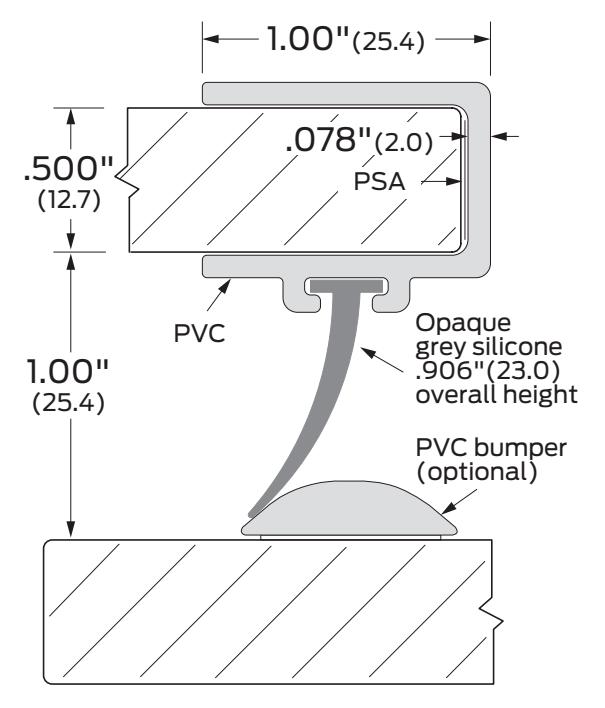

For .500" (12.4mm) doors. Application with #9131 PVC bumper. PSA standard. Min door gap .500", max door gap 1" when used without bumper or 1.2" when used with 9131 bumper.

ANSI/BHMA: 9137 R0E716

Finishes:

CL Clear
