Zero 8879 Head & Jamb Gasketing Meeting Stile Data Sheet 112746
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
8879
Part No: Part description:
Head & jamb gasketing, meeting stile
Notes: Provided by:
Customer name: Job no: Date:

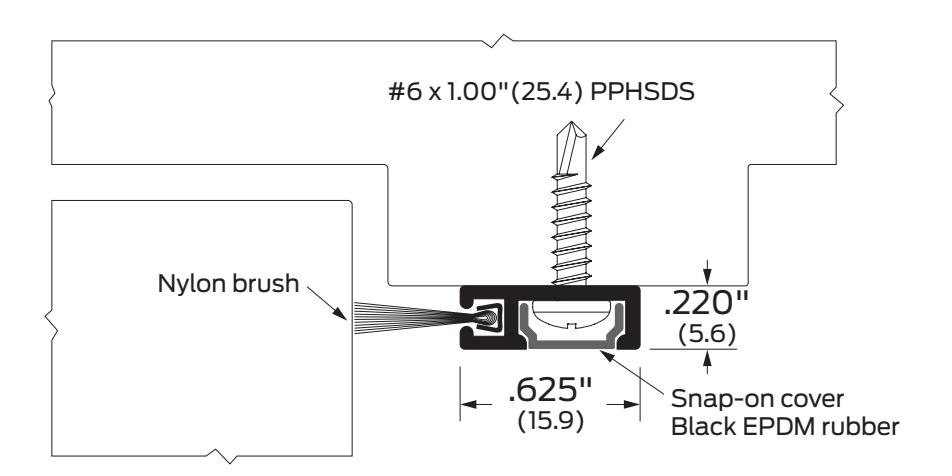

Image may not be shown to scale
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 8879AA, 8879BK, 8879D, 8879G | R3A166, R3A735 | AA | Aluminum clear anodized | PSA | Pressure-sensitive adhesive |
| Smoke and draft control (as head & jamb) | BK | Aluminum black anodized | S | Order as a set | ||
| D | Aluminum dark bronze anodized | SEC | Security screws | |||
| G | Aluminum gold anodized | |||||
