Zero 870 Adjustable Sealing System Jamb Applied Data Sheet 112703
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
870
Part No: Part description:

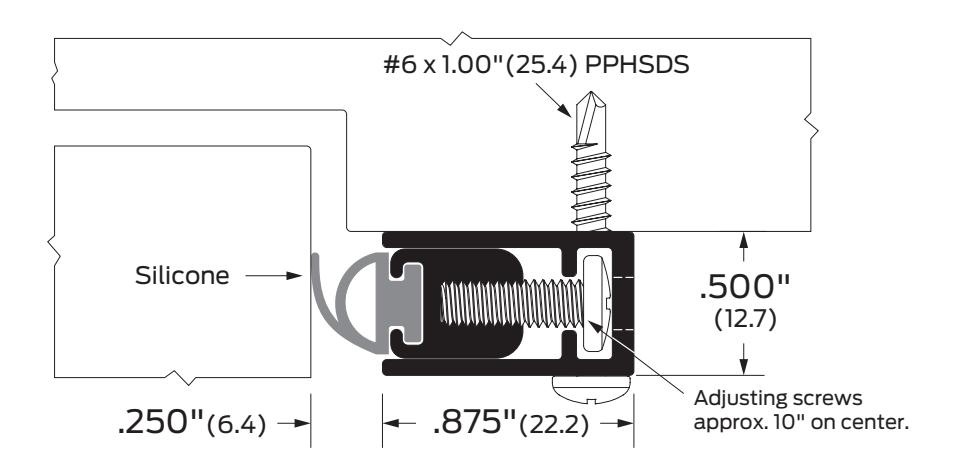

Adjustable sealing system jamb applied
Notes: Provided by:
Customer name: Job no: Date:
Image may not be shown to scale
Notes:
Extruded Bulb/Finger for double-sealing protection.
|
Certifications:
Fire rated-UL10c Smoke and draft control Sound |
ANSI/BHMA:
870AA, 870BK, 870D, 870G |
R3E264 |
Finishes:
AA BK D G |
Aluminum clear anodized
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
Options:
S SEC |
Order as a set
Security screws |
|---|---|---|---|---|---|---|
