Zero 8198 Door Sweep Data Sheet 112671
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
8198
Part No: Part description:
Door sweep
Notes: Provided by:
Customer name: Job no: Date:

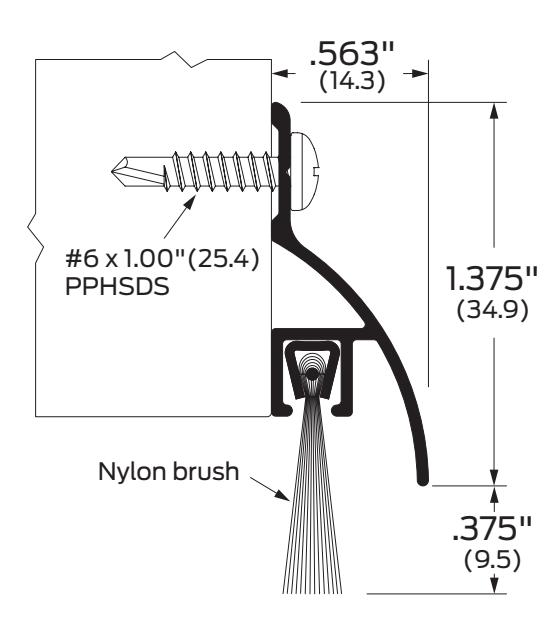

Image may not be shown to scale
Notes:
Surface-mounted with rain drip.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
| Fire rated-UL10c | 8198AA, 8198BK, 8198D, 8199G | R3A536 |
AA
BK D |
Aluminum clear anodized
Aluminum black anodized Aluminum dark bronze anodized |
SEC | Security screws |
| G | Aluminum gold anodized | |||||
