Zero 7770 Adjustable Sealing System Jamb Applied Data Sheet 112700

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

7770

Part No: Part description:

Adjustable sealing system jamb applied

Notes: Provided by:

Customer name: Job no: Date:

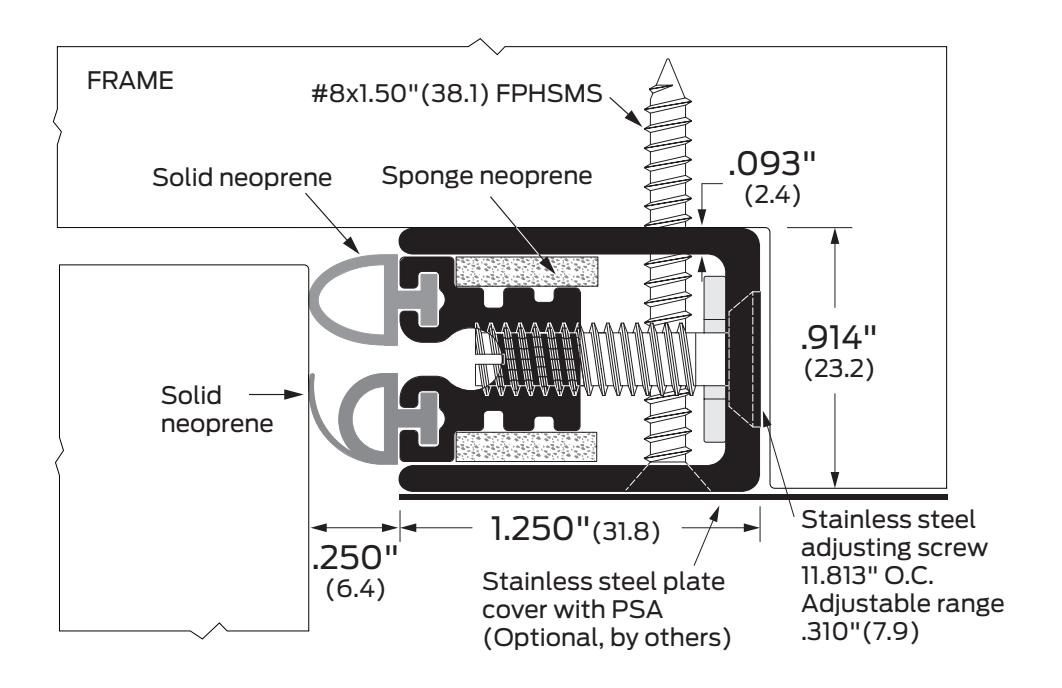

Image may not be shown to scale

Notes:

This model is supplied with mitered corners. Extruded Bulb/Finger for double-sealing protection. 20 minute as a stop, 180 min when applied to stop. 7770

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c Smoke and draft control Sound	7770AA, 7770BK, 7770D, 7770G	R3B264	AA BK D G	Aluminum clear anodized Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized	S SEC	Order as a set Security screws
