2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
770SP / 770STST
Part No: Part description:
Adjustable sealing system jamb applied
Notes: Provided by:
Customer name: Job no: Date:

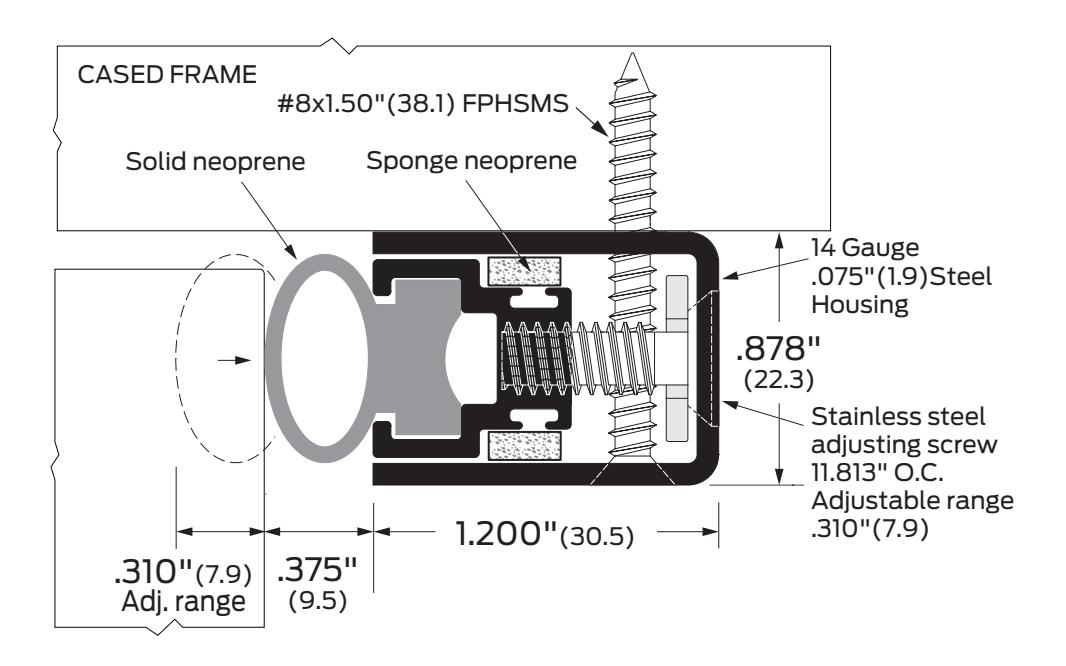

Image may not be shown to scale
Notes:
This model is supplied with mitered corners. 90 min. fire rating for certified wood and metal doors and frames when applied as a stop. Postitive Pressure Listed as a stop for 16 gauge steel cased opening up to 90 minutes on single and pair doors. 180 minutes when applied to a stop.
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
770SP |
Finishes:
SP Steem primed R0B264 |
Options:
S Order as a set |
|||
|---|---|---|---|---|---|---|
| Smoke and draft control | 770STST | R0B254 | STST | Stainless steel | SEC | Security screws |
