Zero 770SP 70STST Adjustable Sealing System Data Sheet 112701

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

770SP / 770STST

Part No: Part description:

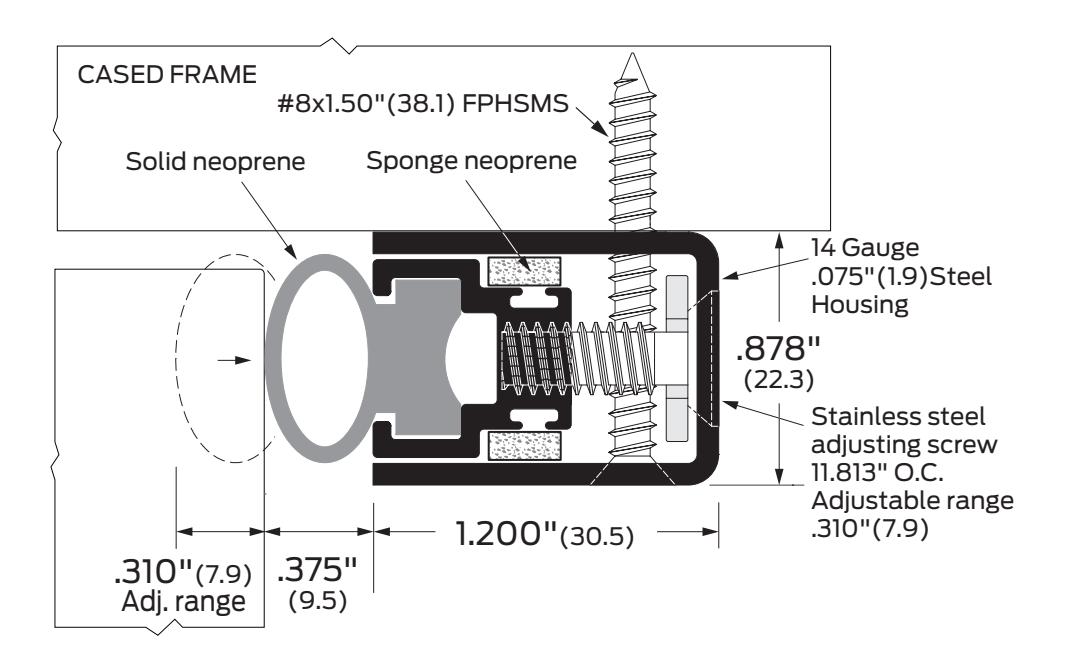

Adjustable sealing system jamb applied

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

Notes:

This model is supplied with mitered corners. 90 min. fire rating for certified wood and metal doors and frames when applied as a stop. Postitive Pressure Listed as a stop for 16 gauge steel cased opening up to 90 minutes on single and pair doors. 180 minutes when applied to a stop.

Certifications: Fire rated-UL10c	ANSI/BHMA: 770SP	Finishes: SP Steem primed R0B264			Options: S Order as a set
Smoke and draft control	770STST	R0B254	STST	Stainless steel	SEC	Security screws
