Zero 770FS Adjustable Sealing System Jamb Applied Data Sheet 112698

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 • Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No:

770FS

Part description:

Adjustable sealing system jamb applied

Notes: Provided by:

Customer name: Job no: Date:

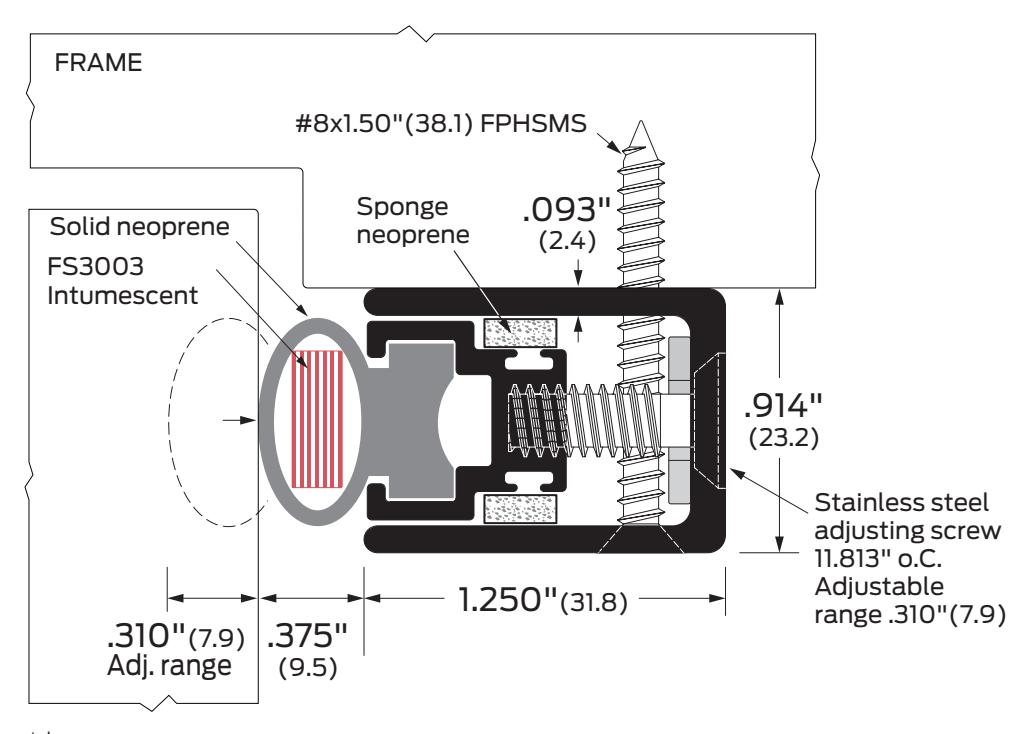

Image may not be shown to scale

Notes:

This model is supplied with mitered corners. 180 min. fire rating for metal doors when applied on a certified steel frame with no cased opening.

Certifications: ANSI/BHMA: Finishes: Options: Fire rated-UL10c s AA Aluminum clear anodized Order as a set 770FS-AA, 770FS-BK, 770FS-D, 770FS-G R3R264 Smoke and draft control BK Aluminum black anodized SEC Security screws D Aluminum dark bronze anodized G Aluminum gold anodized BHMA
