Zero 770 Adjustable sealing system Data Sheet 112697

Open the original PDF document

View PDF

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

770

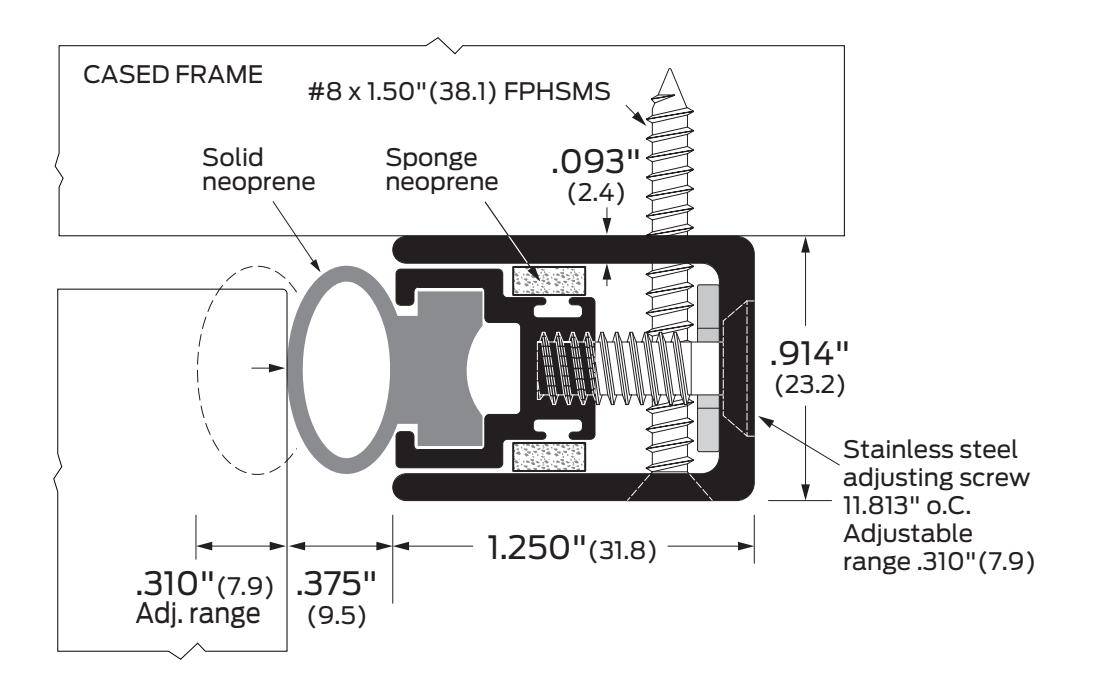

Adjustable sealing system jamb applied

© 2018 Allegion • 012697, Rev. 11/18 • www.allegion.com/us

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

Notes:

This model is supplied with mitered corners. 20 min as a stop. 180 min when applied to stop.

Certifications: Fire rated-UL10c Smoke and draft control Air Infiltration Sound ANSI/BHMA: 770AA, 770BK, 770D, 770G R3B254 Options: S Order as a set SEC Security screws Finishes: AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized
