Zero 7350 Automatic Door Bottom Special Purpose Data Sheet 112646

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

7350

Part No: Part description:

Automatic door bottom Special purpose

Notes: Provided by:

Customer name: Job no: Date:

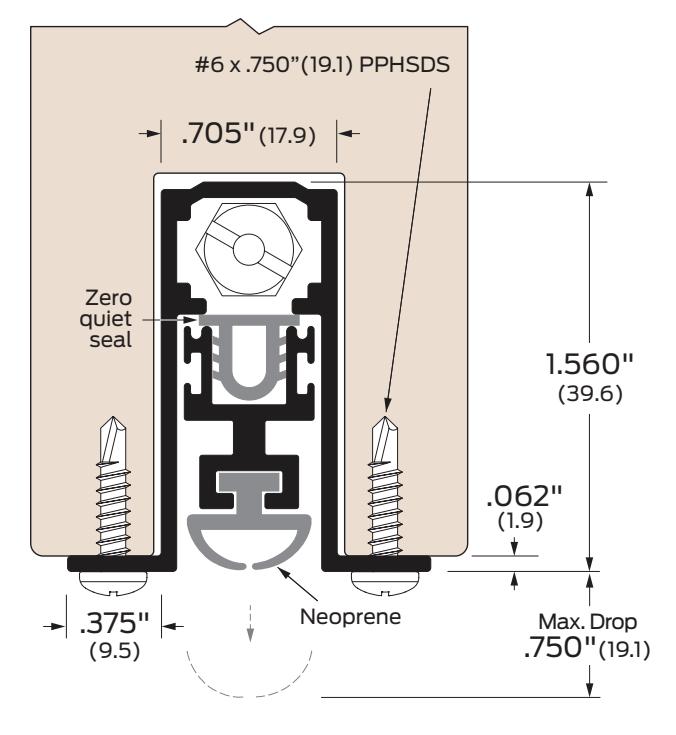

Image may not be shown to scale

Notes:

Mortised, for latching pocket/sliding doors.

This automatic door bottom functions differently from other ZERO door bottoms.

When the plunger is compressed, the mechanism causes the insert seal to activate and drop evenly along the door bottom. Maximum length of 48".

Finishes:

AA Aluminum clear anodized

Options:

LS Light spring

PL Pull out

NH No holes
