Zero 712 Adjustable Sealing System Jamb Applied Data Sheet 112702
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
712
Adjustable sealing system jamb applied
Notes: Provided by:
Customer name: Job no: Date:
Image may not be shown to scale
Notes:

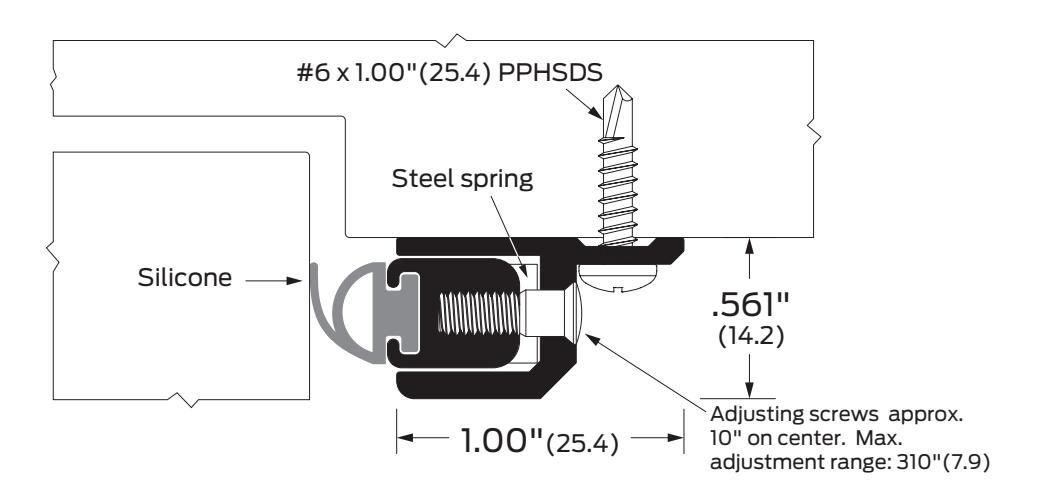

Adjustable and spring loaded. Extruded Bulb/Finger for double-sealing protection.
|
Certifications:
Fire rated-UL10c Smoke and draft control |
ANSI/BHMA:
712AA, 712BK, 712D, 712G |
R3E264 |
Finishes:
AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized |
Options:
S Order as a set SEC Security screws |
||
|---|---|---|---|---|---|---|
| G | Aluminum gold anodized | |||||
