2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
647
Part No: Part description:
Saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

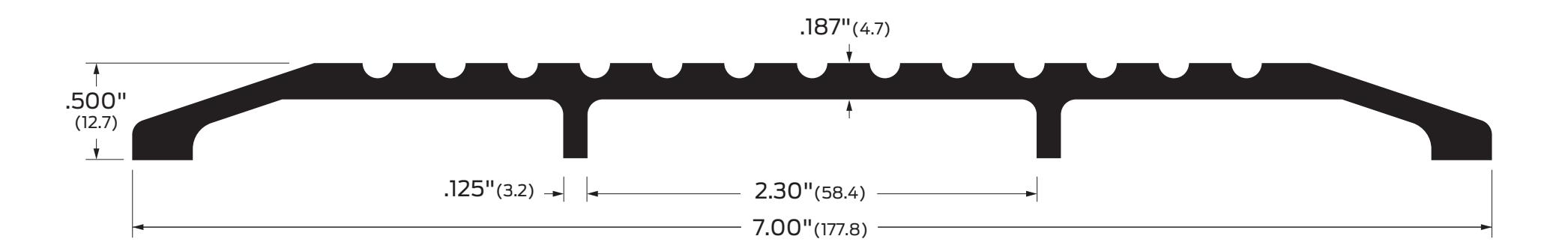

Image may not be shown to scale
Notes:
Supplied without mounting holes.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |
| Fire rated-UL10c | 647B | J12100, J12130 |
B
Bronze, architectural mill finish |
E
Epoxy abrasive tread |
| ADA Accessible | 647B-E | J12200, J12230 |
B-ORB
Oil-rubbed bronze |
EL
Photoluminescent and abrasive epoxy tread |
|
V3
Full body strength fill |
||||
|
EV3
Epoxy and full body strength fill |
||||
|
ELV3
Photoluminescent and abrasive epoxy tread, full body strength fill |
||||
| (not available for B-ORB finish) | ||||
