2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
58FS
Part No: Part description:
Head & jamb gasketing
Notes: Provided by:
Customer name: Job no: Date:

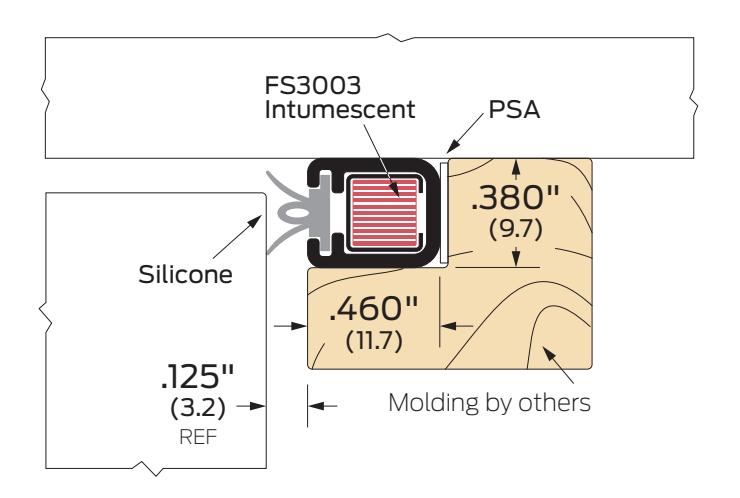

Image may not be shown to scale
Notes:
For applications with very small clearances between door and frame. Supplied standard with PSA.
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
58FS-AA, 58FS-BK, 58FS-D, 58FS-G |
R3U164 |
Finishes:
AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized |
Options:
S Order as a set |
|---|---|---|---|---|
