Zero 5833 Head & Jamb Gasketing Data Sheet 112738

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

5833

Part No: Part description:

Head & jamb gasketing

Notes: Provided by:

Customer name: Job no: Date:

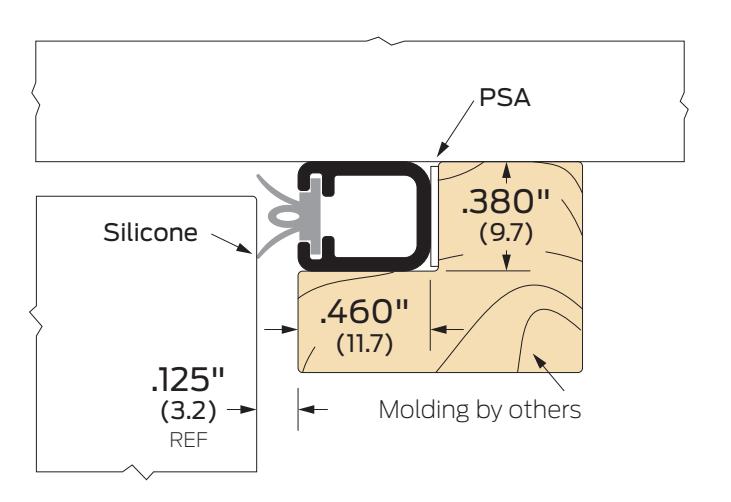

Image may not be shown to scale

Notes:

For applications with very small clearances between door and frame. Supplied standard with PSA.

Certifications: Fire rated-UL10c	ANSI/BHMA: 5833AA, 5833BK, 5833D, 5833G	R3E164	Finishes: Options: AA Aluminum clear anodized S Order as a set BK Aluminum black anodized D Aluminum dark bronze anodized
			G Aluminum gold anodized
