Zero 5831 Head & Jamb Gasketing Data Sheet 112734
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
5831
Part No: Part description:
Head & jamb gasketing
Notes: Provided by:
Customer name: Job no: Date:

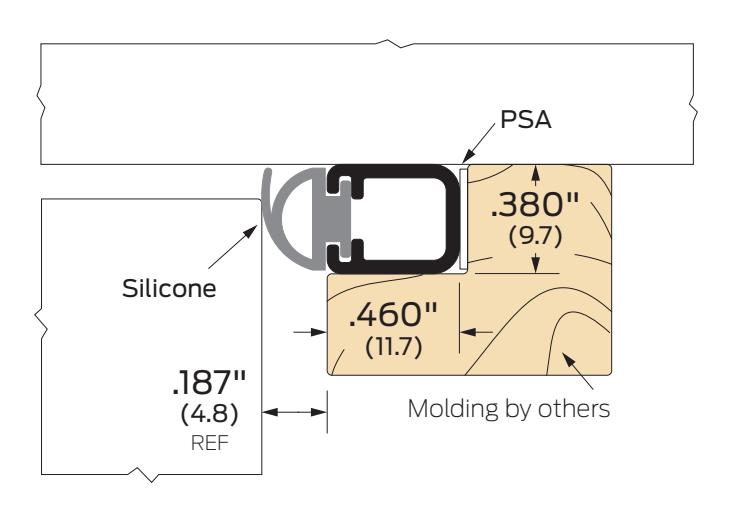

Image may not be shown to scale
Notes:
Extruded Bulb/Finger for double-sealing protection. Supplied standard with PSA.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |
| Fire rated-UL10c | 5831AA, 5831BK, 5831D, 5831G | R3E164 |
AA
Aluminum clear anodized |
S
Order as a set |
|
BK
Aluminum black anodized |
||||
| D | Aluminum dark bronze anodized | |||
| G | Aluminum gold anodized | |||
