Zero 55FS 555FS Meeting Stile Data Sheet 112753

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

55FS/555FS

Part No: Part description:

Meeting stile

Notes: Provided by:

Customer name: Job no: Date:

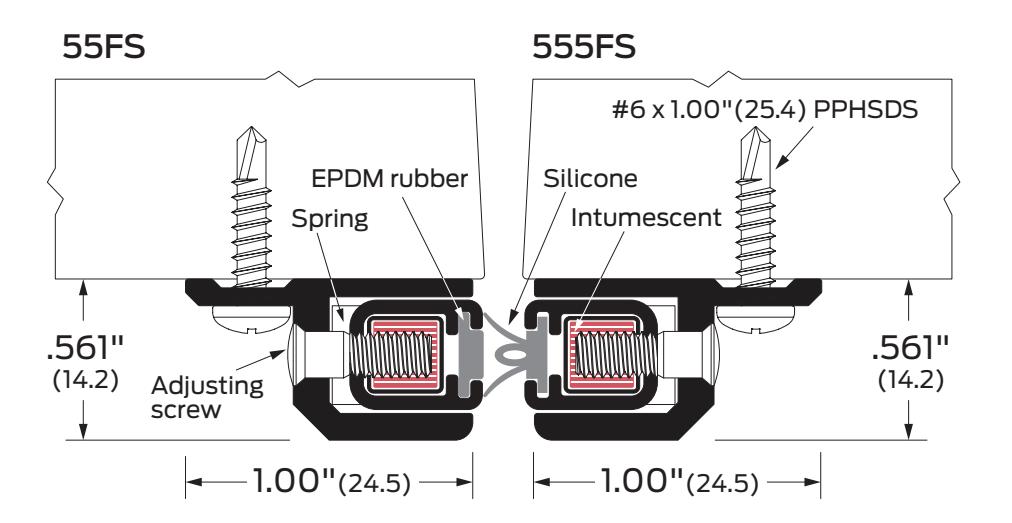

Image may not be shown to scale

Notes:

Fire-rated as a set--both components required. Order components separately.

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c	55FS-AA/555FS-AA, 55FS-BK/555FS-BK, 55FS-D/555FS-D, 55FS-G/555FS-G	AA R3U834 BK D G		Aluminum clear anodized Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized	SEC	Security screws
