Zero 55 155 Meeting Stile Data Sheet 112751
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
55/155
Meeting stile
Notes: Provided by:
Customer name: Job no: Date:

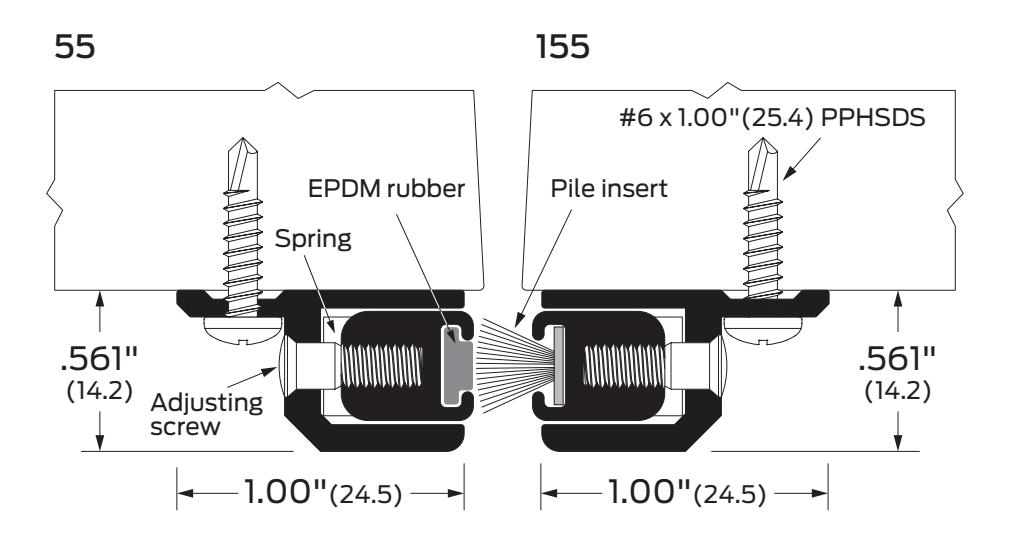

Image may not be shown to scale
Notes:
Fire-rated as a set--both components required. Order components separately.
| Fire-rated as a setboth components required. Order components separately. | |||||||
|---|---|---|---|---|---|---|---|
| Certifications: | ANSI/BHMA: | Finishes: | Options: | ||||
| Fire rated-UL10c |
55AA/155AA, 55BK/155BK, 55D/155D,
55G/155G |
R3F836 |
AA
BK D G |
Aluminum clear anodized
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
SEC | Security screws | |
