Zero 478 Head & Jamb Gasketing Data Sheet 112714

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

478

Head & jamb gasketing

Notes: Provided by:

Customer name: Job no: Date:

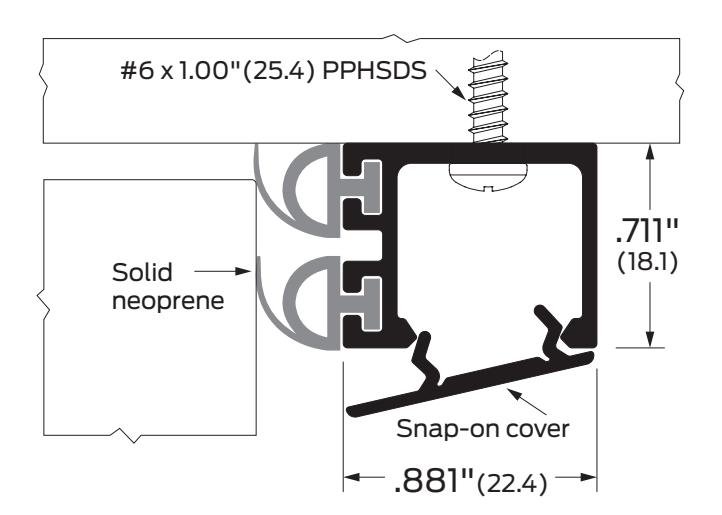

Image may not be shown to scale

Notes:

Extruded Bulb/Finger for double-sealing protection. Channel may be used for low-voltage wiring, subject to local building codes.

Certifications: Fire rated-UL10c Smoke and draft control	ANSI/BHMA: 478AA, 478BK, 478D, 478G	R3B154	Finishes: AA BK D G	Aluminum clear anodized Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized	Options: S SEC	Order as a set Security screws
