Zero 477 Door Sweep Data Sheet 112659
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
477
Door sweep
Notes: Provided by:
Customer name: Job no: Date:

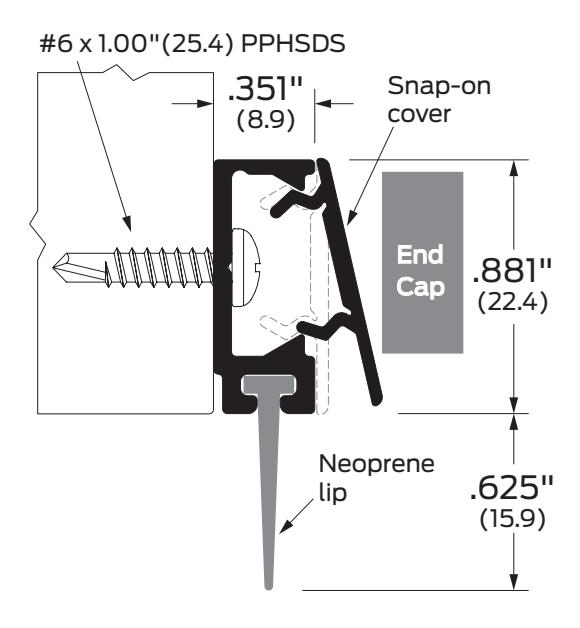

Image may not be shown to scale
Notes:
Specify End Cap option for a clean look on edges.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 477AA, 477BK, 477D, 477G | R3B434 | AA | Aluminum clear anodized | SEC | Security screws |
| Smoke and draft control | BK | Aluminum black anodized | ||||
| D | Aluminum dark bronze anodized | |||||
| G | Aluminum gold anodized | |||||
