Zero 475 Head & Jamb Gasketing Data Sheet 112713

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

475

Head & jamb gasketing

Notes: Provided by:

Customer name: Job no: Date:

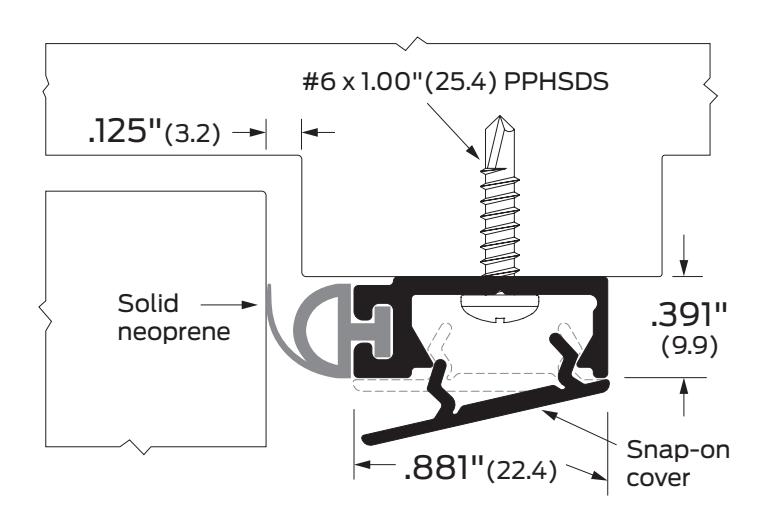

Image may not be shown to scale

Notes:

Extruded Bulb/Finger for double-sealing protection. Channel may be used for low-voltage wiring, subject to local building codes.

Certifications:	ANSI/BHMA:	Finishes:		Options:
Fire rated-UL10c	475AA, 475BK, 475D, 475G	R3B164	AA	Aluminum clear anodized	S	Order as a set
Smoke and draft control			BK	Aluminum black anodized	SEC	Security screws
Air Infiltration			D	Aluminum dark bronze anodized
Sound			G	Aluminum gold anodized
