Zero 470 Head & Jamb Gasketing Data Sheet 112708

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

470

Part No: Part description:

Head & jamb gasketing

Notes: Provided by:

Customer name: Job no: Date:

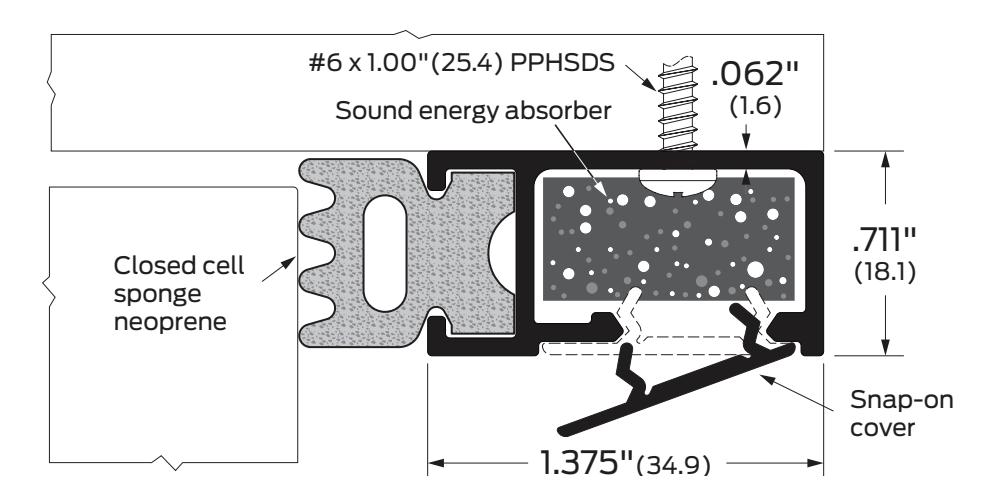

Image may not be shown to scale

Options: S Order as a set SEC Security screws Finishes: AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized ANSI/BHMA: 470AA, 470BK, 470D, 470G R3C154
