Zero 40 Meeting Stile Data Sheet 112789

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

40

Meeting stile

Notes: Provided by:

Customer name: Job no: Date:

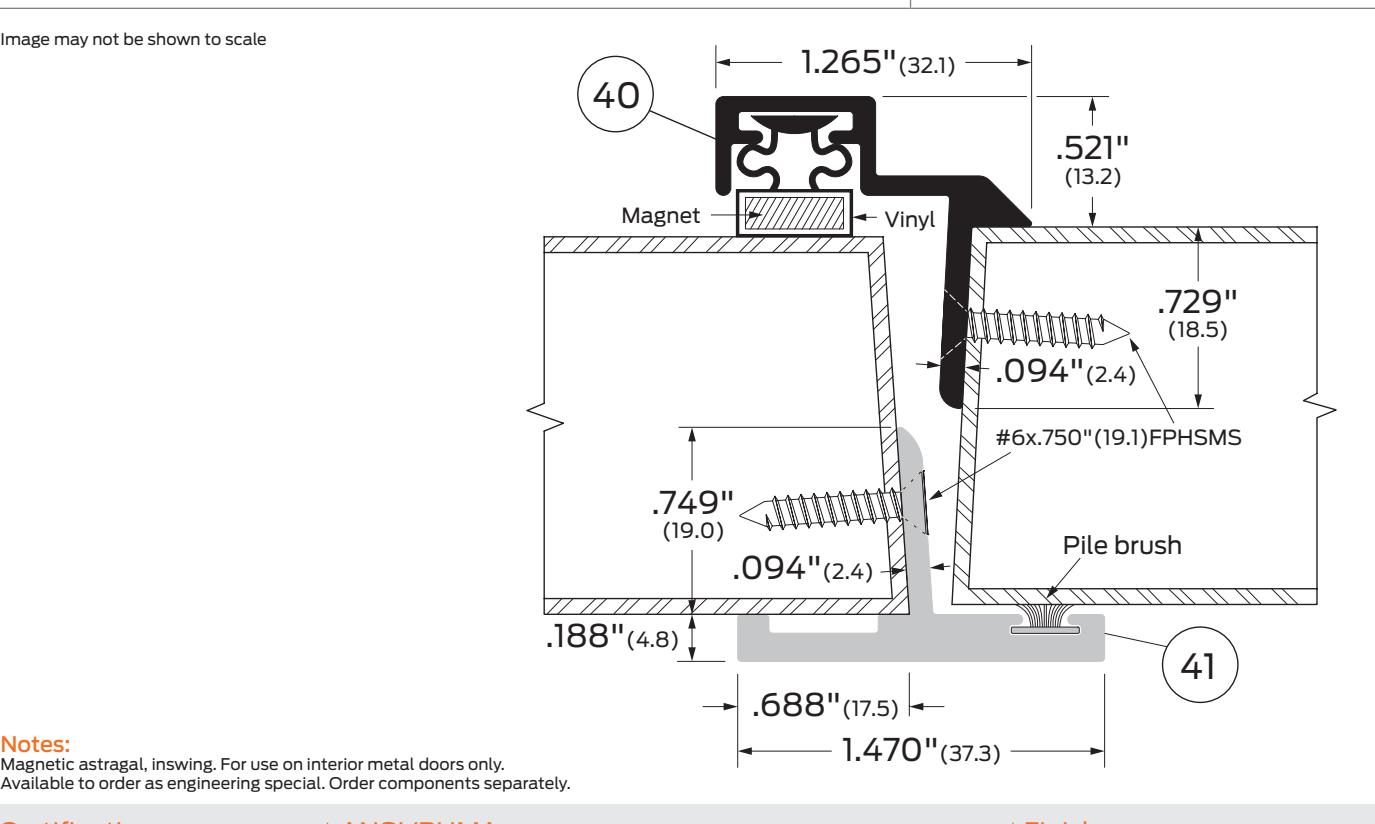

Image may not be shown to scale

Certifications:

Notes:

Fire rated-UL10c

ANSI/BHMA:

40AA, 40BK, 40D, 40G R3L635

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized
