Zero 39W Door Sweep Data Sheet 112655
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
39W
Part No: Part description:
Door sweep
Notes: Provided by:
Customer name: Job no: Date:

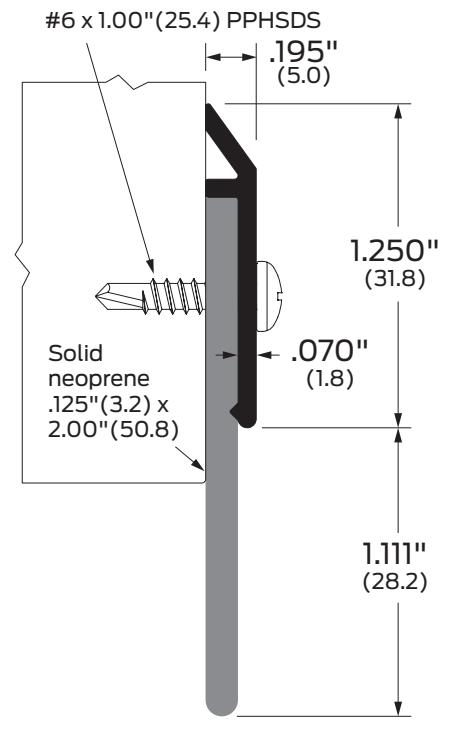

Image may not be shown to scale
| Certifications: |
39W
ANSI/BHMA: |
Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 39WA, 39WBK, 39WD, 39WG |
A
R3B434 BK |
Aluminum mill finish
Aluminum black anodized |
SEC | Security screws | |
| D | Aluminum dark bronze anodized | |||||
| G | Aluminum gold anodized | |||||
