Zero 383 Meeting Stile Data sheet 112784
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
383
Meeting stile
Notes: Provided by:
Customer name: Job no: Date:

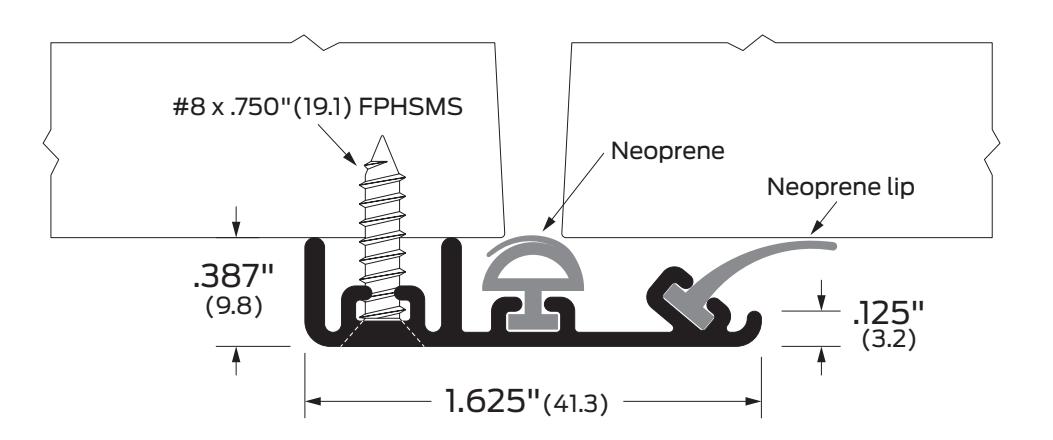

Image may not be shown to scale
Notes:
90 minute max fire rating
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 383AA, 383BK, 383D, 383G | R3B634 | AA | Aluminum clear anodized | SEC | Security screws |
| Sound | BK | Aluminum black anodized | ||||
| D | Aluminum dark bronze anodized | |||||
| G | Aluminum gold anodized | |||||
