Zero 381 Door Shoe Meeting Stile Data Sheet 112690
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
381
Door shoe, meeting stile
Notes: Provided by:
Customer name: Job no: Date:

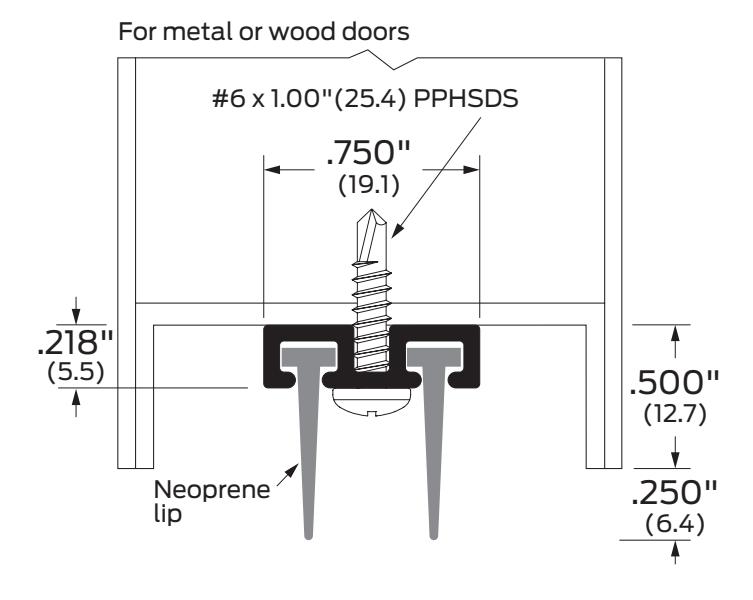

Image may not be shown to scale
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
381A |
R3B424, R3B724 |
Finishes:
A |
Aluminum mill finish |
Options:
FLO SEC |
Air flow/sound block
Security screws |
|---|---|---|---|---|---|---|
