Zero 376 Head & Jamb Gasketing Data Sheet 112726

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

376

Head & jamb gasketing

Notes: Provided by:

Customer name: Job no: Date:

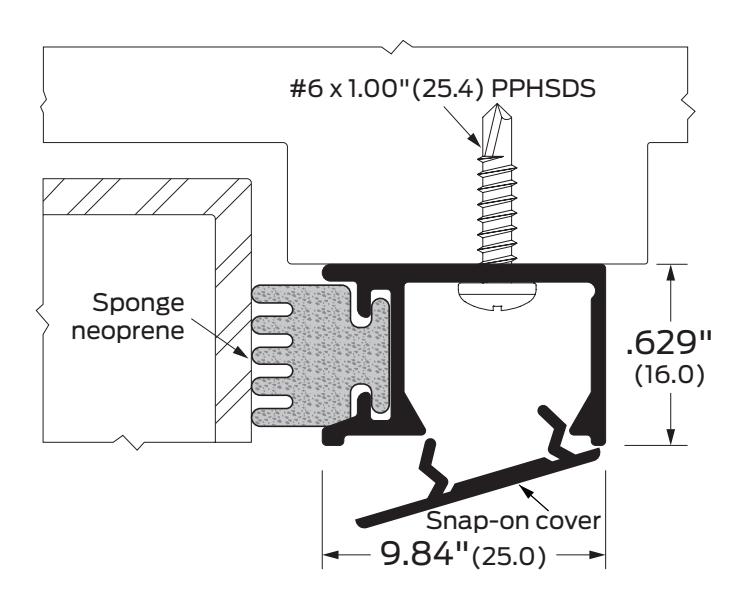

Image may not be shown to scale

Notes:

Channel may be used for low-voltage wiring, subject to local building codes.

Certifications:	ANSI/BHMA:			Finishes:		Options:
Fire rated-UL10c	376AA, 376BK, 376D, 376G	R3C164	AA	Aluminum clear anodized	S	Order as a set
Smoke and draft control			BK	Aluminum black anodized	SEC	Security screws
			D	Aluminum dark bronze anodized
			G	Aluminum gold anodized
