Zero 375 Head & Jamb Gasketing Meeting Stile Data Sheet 112717
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
375

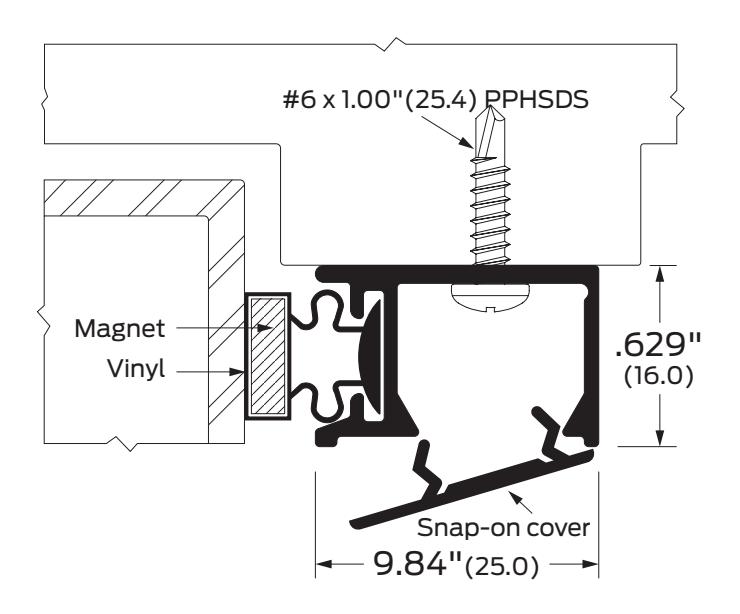

Head & jamb gasketing, meeting stile
Notes: Provided by:
Customer name: Job no: Date:
Image may not be shown to scale
Notes:
For use with interior metal doors only. Available to order as engineering special.
|
Certifications:
Fire rated-UL10c (as head & jamb) Sound (as head & jamb) |
ANSI/BHMA:
375A, 375BK, 375D, 375G |
R3L165, R3L734 |
Finishes:
A BK D G |
Aluminum mill finish
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
|---|---|---|---|---|
