Zero 3709 Head & Jamb Gasketing Data Sheet 112707

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

3709

Part No: Part description:

Head & jamb gasketing

Notes: Provided by:

Customer name: Job no: Date:

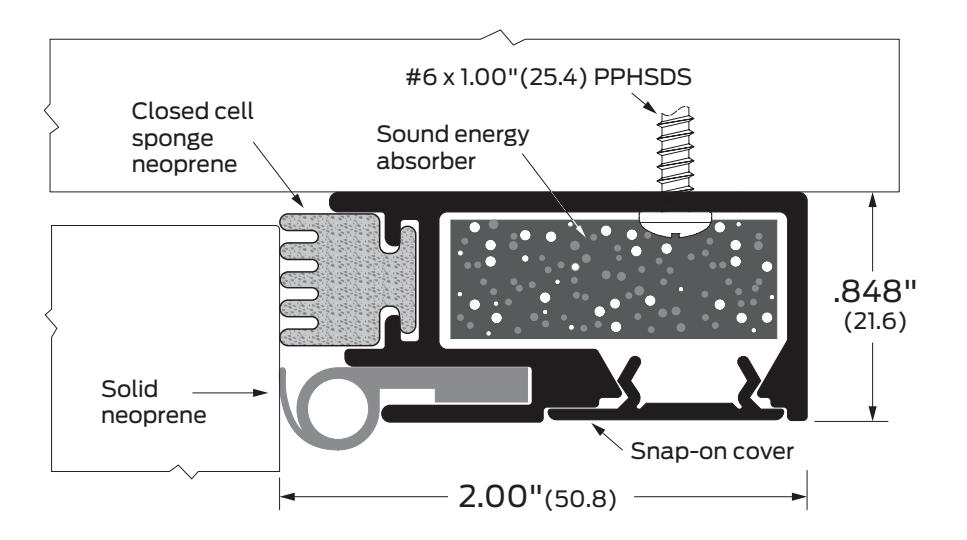

Image may not be shown to scale

Notes:

Extruded Bulb/Finger for double-sealing protection.

Finishes:

AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized

Options:

SEC Security screws
