Zero 370 Head & Jamb Gasketing Meeting Stile Data Sheet 112716
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
370
Head & jamb gasketing, meeting stile
Notes: Provided by:
Customer name: Job no: Date:

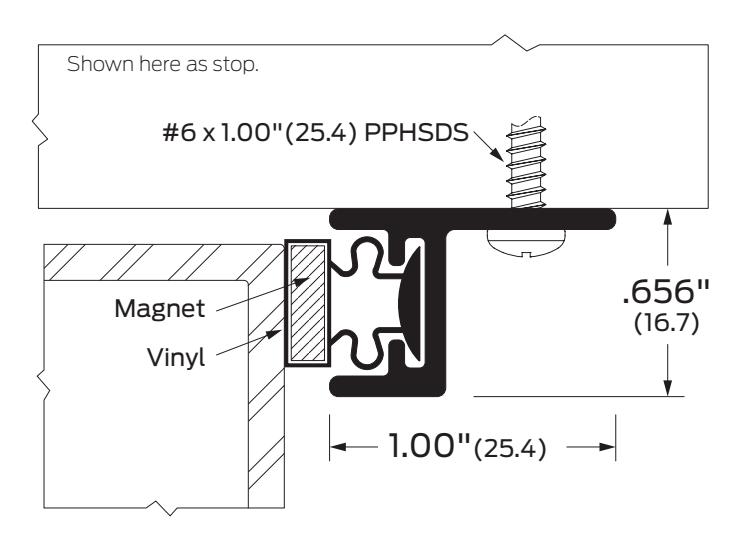

Image may not be shown to scale
Notes:
For use with interior metal doors only. Available to order as engineering special.
| Certifications: | ANSI/BHMA: | Finishes: | ||
|---|---|---|---|---|
| Fire rated-UL10c (as head & jamb) | 370A, 370BK, 370D, 370G | R3L155, R3L734 | A | Aluminum mill finish |
| Air Infiltration (as head & jamb) | BK | Aluminum black anodized | ||
| Sound (as head & jamb) | D | Aluminum dark bronze anodized | ||
| G | Aluminum gold anodized | |||
