2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
369
Part No: Part description:
Automatic door bottom Heavy duty
Notes: Provided by:
Customer name: Job no: Date:

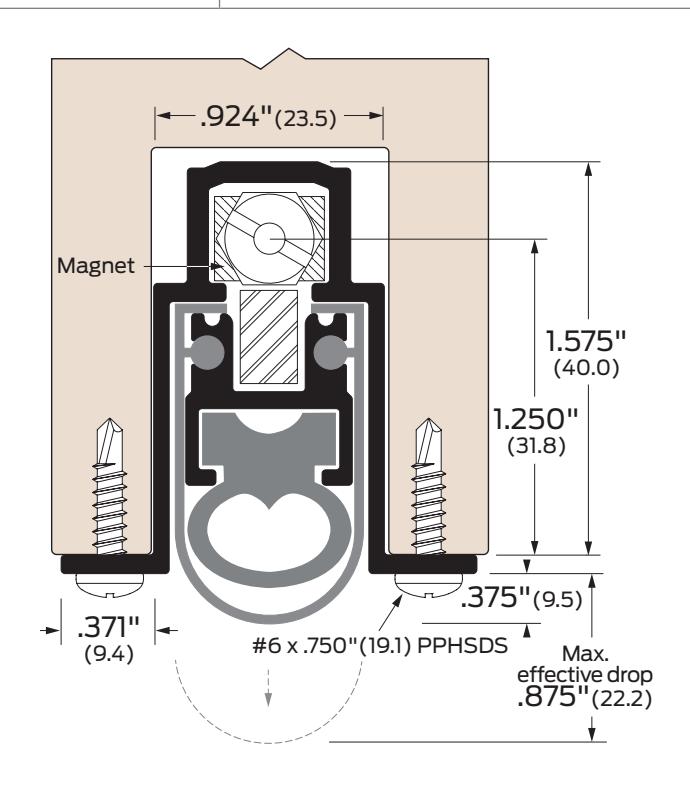

Image may not be shown to scale
Notes:
Mortised. Supplied with double solid neoprene seal. Magnet feature only on ADBs 24" and over. Consult your local AHJ for maximum allowable door undercut.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | ||||
|---|---|---|---|---|---|---|---|
|
Fire rated-UL10c
Sound |
369AA | R3B3241 | AA | Aluminum clear anodized |
Z49
PL NH |
Removable end cap
Pull out No holes |
|
