Zero 368 Automatic Door Bottom Heavy Duty Data Sheet 112633

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

368

Part No: Part description:

Automatic door bottom Heavy duty

Notes: Provided by:

Customer name: Job no: Date:

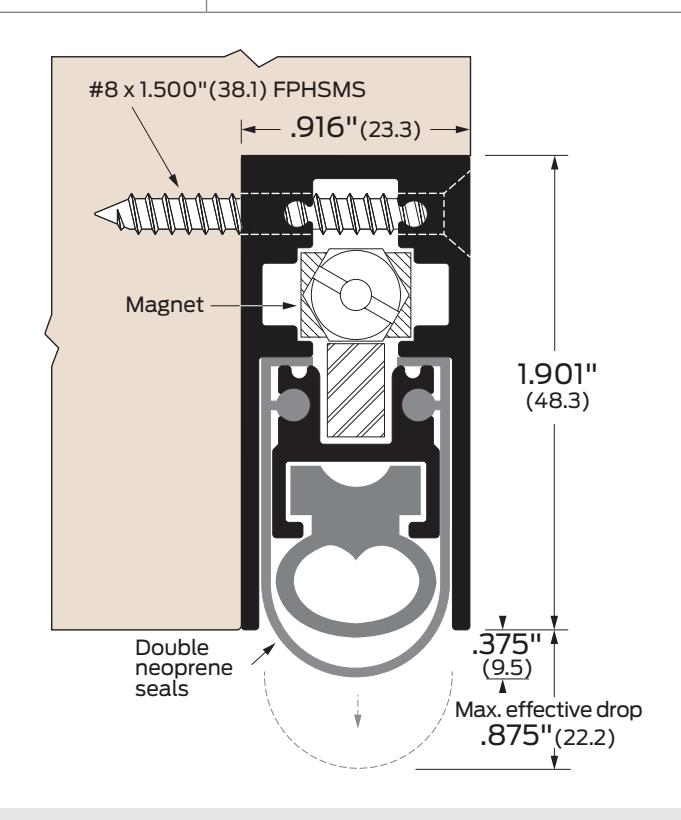

Image may not be shown to scale

Notes:

Semi-mortised applications. Suppiled with solid neoprene extrusion. Magnet feature only on ADBs 24" and over. Consult your local AHJ for maximum allowable door undercut.

Certifications:

Fire rated-UL10c

ANSI/BHMA:

368AA, 368BK, 368D, 368G R3B3441

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze

anodized

G Aluminum gold anodized

Options:

PL Pull out

SEC Torx security screws

LK Locking key

NH No holes
