367

Part No: Part description:

Automatic door bottom Heavy duty

Notes: Provided by:

Customer name: Job no: Date:

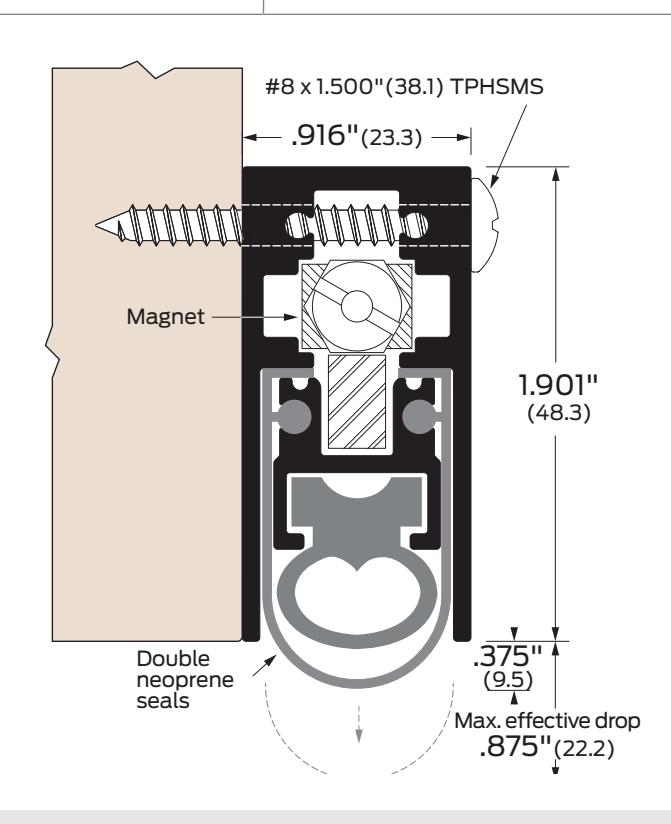

Image may not be shown to scale

Notes:

Surface-mounted. Supplied with double solid neoprene seal. Magnet feature only on ADBs 24" and over.

Certifications:

Fire rated-UL10c

Sound

ANSI/BHMA:

367AA, 367BK, 367D, 367G R3B3341

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze

anodized

G Aluminum gold anodized

Options:

PL Pull out

SEC Torx security screws

LK Locking key

NH No holes
