Zero 366 Automatic Door Bottom Heavy Duty Data Sheet 112630

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

366

Part No: Part description:

Automatic door bottom Heavy duty

Notes: Provided by:

Customer name: Job no: Date:

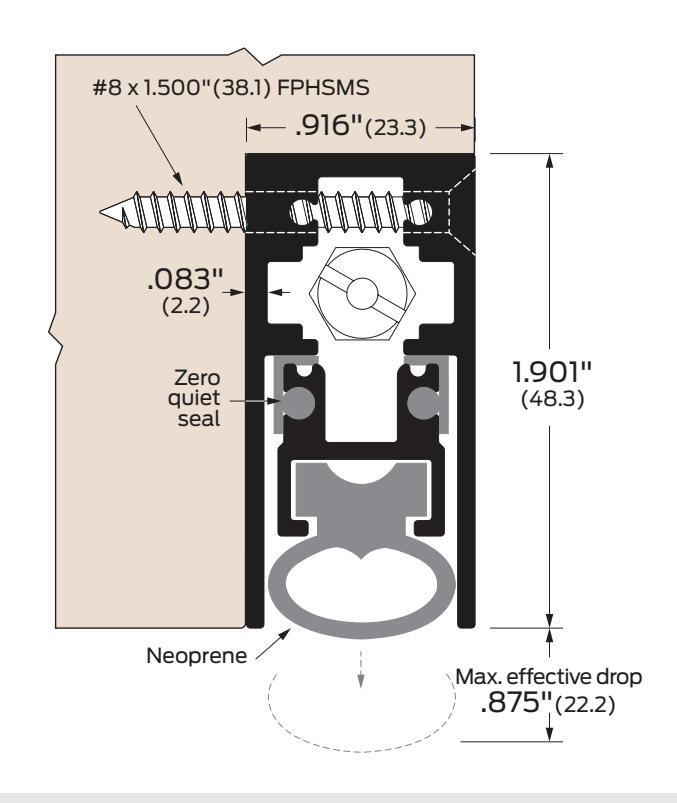

Image may not be shown to scale

Notes:

Semi-mortised applications. Suppiled with solid neoprene extrusion. Consult your local AHJ for maximum allowable door undercut.

Certifications:
Fire rated-UL10c

ANSI/BHMA:

366AA, 366BK, 366D, 366G R3B3441

Finishes:

AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

LS Light spring PL Pull out

SEC Torx security screws

LK Locking key NH No holes
