Zero 365FS Automatic Door Bottom Special Purpose Data Sheet 112645

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

365FS

Part No: Part description:

Automatic door bottom Special purpose

Notes: Provided by:

Customer name: Job no: Date:

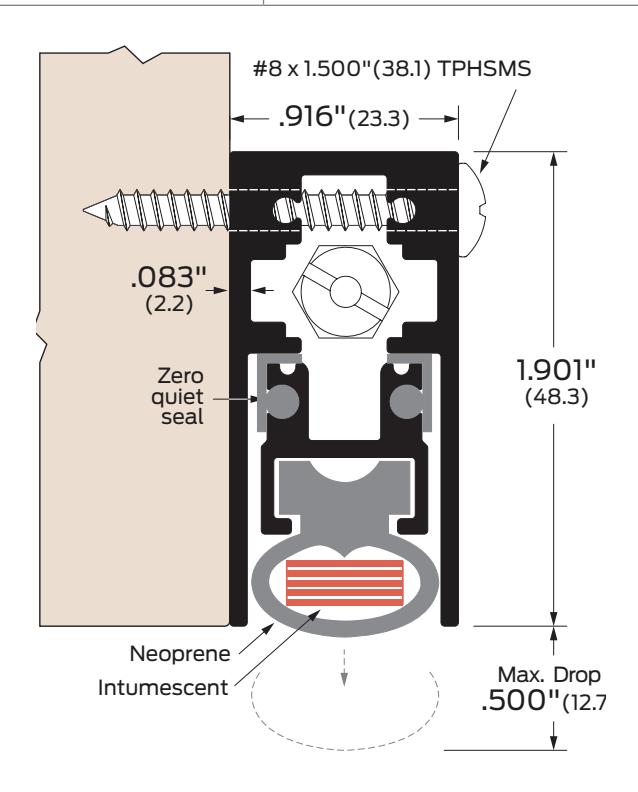

Image may not be shown to scale

Notes:

Surface-mounted application. Intumescent fire protection.

Certifications: Fire rated-UL10c	ANSI/BHMA: 365FS-AA, 365FS-BK, 365FS-D, 355FSG	R3B3341	Finishes: AA BK D G	Aluminum clear anodized Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized	Options: PL SEC LK NH	Pull out Torx security screws Locking key No holes
