365

Part No: Part description:

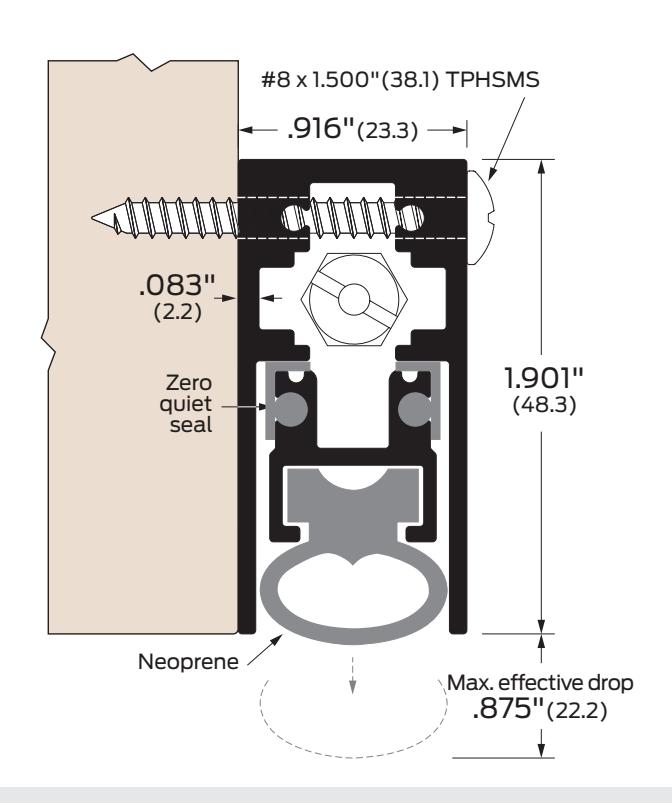

Automatic door bottom Heavy duty

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

Notes:

Surface-mounted applications. Supplied with solid neoprene extrusion.

Certifications:

Fire rated-UL10c

Air Infiltration

Sound

ANSI/BHMA:

365AA, 365BK, 365D, 365G R3B3341

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze

anodized

G Aluminum gold anodized

Options:

LS Light spring

PL Pull out

SEC Torx security screws

LK Locking key

NH No holes
